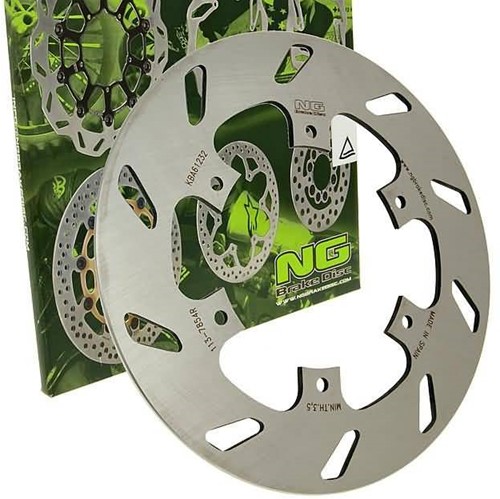

De remschijfspecialist NG Brake Disc is een Spaans familiebedrijf dat al meer dan 20 jaar remschijven produceert voor motoren, scooters, quads en ATV's. Meer dan 30 bekende Europese en Japanse autofabrikanten vertrouwen op de topkwaliteit van NG en rusten hun voertuigen af ??fabriek uit met remschijven van NG-fabricage.
Als een van de weinige fabrikanten hebben alle NG-remschijven KBA-goedkeuring en mogen ze op de openbare weg worden gereden.
De afmetingen van de OEM-versie komen volledig overeen met de originele remschijf. Het ontwerp kan echter bij sommige modellen verschillen.
Buitendiameter: 220 mm
Binnendiameter : 105 mm
Dikte: 4,0 mm
Gaten: 6
Diameter gat: 6,5 mm
Type: standaard
Passend op de volgende modellen:
Benelli-Pepe 50 (-03) [Minarelli]
Benelli-Pepe 50 (03-06) [Morini]
Derbi-GP1 125 4V LC 07- [VTHPS1B1A]
Derbi-GP1 250 4V LC 07- E3 [VTHPT1B1A]
Derbi-GP1 50 2T Open 06-09 E2 [VTHPR1B1A]
Derbi-Sonar 125 4T 2V AC 09-11 [VTHLS1A1A]
Derbi Sonar 150 4T 2V AC 09- [VTHLS3A1A]
Derbi-Sonar 50 2T AC 09- (Piaggio-motor) [VTHLR1A1A]
Gilera Runner 125 VX 4T 4V LC 01-05 [ZAPM24000 / 24100]
Gilera Runner 125 VX 4T 4V LC 05-06 (Verenigd Koninkrijk) [ZAPM46100]
Gilera Runner 125 VX 4T 4V LC 05-06 [ZAPM46100]
Gilera Runner 125 VX 4T 4V LC 06-07 [ZAPM46300]
Gilera Runner 125 VX 4T 4V LC 07- [ZAPM46300]
Gilera Runner 125 VX Race 4T 4V LC 05- [ZAPM46100]
Gilera-Runner 125 VX Race 4T 4V LC 06- (Verenigd Koninkrijk) [ZAPM46300]
Gilera Runner 125 VX Race 4T 4V LC 06- [ZAPM46300]
Gilera Runner 125 VX SC 4T 4V LC 06- (Verenigd Koninkrijk) [ZAPM46300]
Gilera Runner 125 VX SC 4T 4V LC 06- [ZAPM46300]
Gilera Runner 125 VX SC 4T 4V LC 06-07 (Verenigd Koninkrijk) [ZAPM46100]
Gilera Runner 125 VX SC 4T 4V LC 06-07 [ZAPM46100]
Gilera-Runner 125 VX Series Speciale 4T 4V LC 07- [ZAPM46300]
Gilera Runner 200 VXR 4T 4V LC 03-05 [ZAPM243000]
Gilera Runner 200 VXR 4T 4V LC 05-06 [ZAPM46200]
Gilera Runner 200 VXR 4T 4V LC 06- (Verenigd Koninkrijk) [ZAPM46400]
Gilera Runner 200 VXR 4T 4V LC 06- [ZAPM46400]
Gilera Runner 200 VXR Race 4T 4V LC 05-06 [ZAPM46200]
Gilera Runner 200 VXR Race 4T 4V LC 06- (Verenigd Koninkrijk) [ZAPM46200]
Gilera Runner 200 VXR Race 4T 4V LC 06- [ZAPM46300]
Gilera Runner 200 VXR Race 4T 4V LC 06- [ZAPM46400]
Gilera Runner 200 VXR ST 4T 4V LC 08-11 [ZAPM46401]
Gilera-Runner 50 SP 05- (carburateur) (Verenigd Koninkrijk) [ZAPC461000]
Gilera-Runner 50 SP 05-06 (carburateur) [ZAPC46100]
Gilera-Runner 50 SP 07- (carburateur) [ZAPC461000]
Gilera-Runner 50 SP 08-09 (carburateur) [ZAPC461000]
Gilera-Runner 50 SP Race 05- (carburateur) [ZAPC461000]
Gilera-Runner 50 SP SC -06 (carburateur) [ZAPC46100]
Gilera-Runner 50 ie Purejet 05-06 (Verenigd Koninkrijk) [ZAPC46200]
Gilera Runner 50 ie Purejet 05-06 [ZAPC46200]
Gilera Runner 50 ie Purejet Race 05-06 [ZAPC46200]
Gilera Runner 50 ie Purejet SC-05 (Verenigd Koninkrijk) [ZAPC46200]
Gilera Runner 50 ie Purejet SC -06 [ZAPC46200]
Gilera Runner 50 ie Purejet ST -08 [ZAPC46200]
Piaggio-Fly 125 ie 3V AC 12-13 (DD schijf / schijf) [RP8M79100]
Piaggio-Free 100 4T 2V [ZAPM29100]
Piaggio Hexagon GTX Super 125 4T 4V LC (12 inch) [ZAPM200000200]
Piaggio Hexagon GTX Super 180 4T 4V LC (12 inch) [ZAPM200000300]
Piaggio Liberty 125 2V 01-02 [ZAPM22000]
Piaggio Liberty 125 2V 06-07 [ZAPM38100]
Piaggio Liberty 125 2V 06-08 [ZAPM38600]
Piaggio Liberty 125 2V 98-01 [ZAPM11000]
Piaggio-Liberty 125 2V Levering 07-08 [ZAPM38602 / 38606]
Piaggio Liberty 125 2V Levering 08-09 [ZAPM38602 / 38604/38605]
Piaggio Liberty 125 2V Nexive 15- [ZAPM38602 / 38604/38605]
Piaggio-Liberty 125 2V Post 01-02 [ZAPM22000]
Piaggio-Liberty 125 2V Post 07- [ZAPM38101]
Piaggio-Liberty 125 2V Post Frankrijk 07- [ZAPM38603]
Piaggio-Liberty 125 2V Post Italië 06- [ZAPM38103]
Piaggio-Liberty 125 2V Post Slovenië 13- [ZAPM38605]
Piaggio-Liberty 125 2V Post Spanje 07-15 [ZAPM38102 / 38607/38602]
Piaggio-Liberty 125 2V enkele / 1-zits 12-15 [ZAPM38602 / 38606]
Piaggio-Liberty 125 2V Sport 06- [ZAPM38100]
Piaggio-Liberty 125 2V Sport 06-08 [ZAPM38601]
Piaggio Liberty 150 2V 08- [ZAPM38700]
Piaggio Liberty 150 2V Post 11- [ZAPM38800]
Piaggio Liberty 150 2V Sport 08- [ZAPM38701]
Piaggio Liberty 150 2V [ZAPM220002]
Piaggio Liberty 200 2V 06- [ZAPM38400]
Piaggio Liberty 200 2V 06-08 [ZAPM38500]
Piaggio Liberty 200 2V Sport 06- [ZAPM38401]
Piaggio Liberty 200 2V Sport 06-07 [ZAPM38501]
Piaggio-Liberty 50 2T 06 [ZAPC42100]
Piaggio Liberty 50 2T 07- [ZAPC42100]
Piaggio Liberty 50 2T 08- [ZAPC42500]
Piaggio Liberty 50 2T 97- [ZAPC15000]
Piaggio-Liberty 50 2T Post [ZAPC37401000]
Piaggio-Liberty 50 2T RST Post (Zwitserland) [ZAPC42102]
Piaggio-Liberty 50 2T RST-paal [ZAPC42101]
Piaggio Liberty 50 2T RST [ZAPC42100]
Piaggio-Liberty 50 2T Sport 06 [ZAPC42106]
Piaggio-Liberty 50 2T Sport 07- [ZAPC42106]
Piaggio-Liberty 50 2T Sport 07-08 [ZAPC42501]
Piaggio Liberty 50 4T 2V -05 [ZAPC28200]
Piaggio Liberty 50 4T 2V 05-08 [ZAPC42400]
Piaggio-Liberty 50 4T 2V 12-14 eenpersoons / 1-zits [ZAPC42401 / 42403]
Piaggio-Liberty 50 4T 2V 15- Nexive [ZAPC42404 / 42402]
Piaggio-Liberty 50 4T 2V Levering 06- [ZAPC42402]
Piaggio-Liberty 50 4T 2V Levering 09- TNT [ZAPC42406]
Piaggio-Liberty 50 4T 2V Levering 10-17 [ZAPC42401 / 42403]
Piaggio-Liberty 50 4T 2V Post 06-17 BENELUX [ZAPC42404 / 42401]
Piaggio-Liberty 50 4T 2V Post 07-17 Duitsland [ZAPC42406]
Piaggio-Liberty 50 4T 2V Post 09-17 [ZAPC42404 / 42402]
Piaggio Liberty 50 4T 2V RST -05 [ZAPC42200]
Piaggio Liberty 50 4T 2V RST Levering -05 [ZAPC42401]
Piaggio-Liberty 50 4T 2V Sport 06 [ZAPC42405]
Piaggio-Liberty 50 4T 2V Sport 07-08 [ZAPC42405]
Piaggio-Liberty elektrische paal 11-17 [ZAPC51101 / ZAPM78103 / ZAPC51103]
Piaggio-NRG 50 Power AC (DT schijf / trommel) -04 [ZAPC45300]
Piaggio-NRG 50 Power AC (DT schijf / trommel) 05 [ZAPC45300]
Piaggio-NRG 50 Power AC (DT schijf / trommel) 06- [ZAPC45300]
Piaggio-NRG 50 Power AC (DT schijf / trommel) 07-12 Serie Speciale [ZAPC45300 / 45301]
Piaggio-NRG 50 Power AC (DT schijf / trommel) 07-15 [ZAPC45300]
Piaggio-NRG 50 Power LC (DD schijf / schijf) -05 [ZAPC36200]
Piaggio-NRG 50 Power LC (DD schijf / schijf) 05-06 [ZAPC45100]
Piaggio-NRG 50 Power LC (DD schijf / schijf) 07-12 Serie Speciale [ZAPC45100]
Piaggio-NRG 50 Power LC (DD schijf / schijf) 07-17 [ZAPC45100]
Piaggio-NRG 50 Power Purejet LC (DD schijf / schijf) -05 [ZAPC452000001]
Piaggio-NRG 50 Power Purejet LC (DD schijf / schijf) 05-06 [ZAPC45200]
Piaggio-NRG 50 Power Purejet LC (DD schijf / schijf) 07-09 [ZAPC45200]
Piaggio-NRG 50 Power Purejet LC (DD schijf / schijf) 10- [ZAPC45200]
Vespa -GT 125 L Granturismo E2 -04 [ZAPM31100]
Vespa -GT 125 L Granturismo E2 05 [ZAPM31101]
Vespa -GT 125 L Granturismo E3 06- [ZAPM31300]
Vespa -GT 200 L Granturismo 4V -04 [ZAPM31200]
Vespa -GT 200 L Granturismo 4V -05 [ZAPM319K]
Vespa -GT 200 L Granturismo 4V E2 05- [ZAPM31200]
Vespa -GT 200 L Granturismo 4V E2 06 [ZAPM319K]
Vespa -GT 200 L Granturismo 4V E2 07-08 [ZAPM319K]
Vespa -GT 250 ie 60 ° Granturismo E3 06-07 [ZAPM45102]
Vespa -GT 250 ie 60 ° Granturismo E3 06-07 [ZAPM459L]
Vespa -GTS 125 4V 07-12 E3 [ZAPM313]
Vespa -GTS 125 iGet Super 3V 17-19 ABS E3 [RP8M45510 / RP8M45820]
Vespa -GTS 125 ie 4V 16-18 ABS E4 [ZAPMA3100 / ZAPMA3200]
Vespa -GTS 125 ie 4V 19- ABS E4 [ZAPMA3700]
Vespa -GTS 125 ie Super 4V 09-16 ABS / of ABS E3 [ZAPM4530]
Vespa -GTS 125 ie Super 4V 16-18 ABS E4 [ZAPMA3100 / ZAPMA3200]
Vespa -GTS 125 ie Super 4V 18-19 ABS E4 [ZAPMA3700]
Vespa -GTS 150 ie 3V ABS E4 16-18 [ZAPMA3100 / ZAPMA3200]
Vespa -GTS 150 ie Super 3V E4 ABS 17-19 [RP8M45610 / RP8M45900]
Vespa -GTS 150 ie Super Sport 3V E4 ABS 17-19 [RP8M45610 / RP8M45900]
Vespa -GTS 250 ie 4V E3 05-09 ABS [ZAPM45101]
Vespa -GTS 250 ie 4V E3 05-09 [ZAPM45100]
Vespa -GTS 250 ie 4V E3 05-16 [ZAPM45100]
Vespa -GTS 250 ie 4V E3 06-07 [ZAPM459L]
Vespa -GTS 250 ie 4V E3 08-09 [ZAPM459L]
Vespa -GTS 250 ie 4V E3 11-13 (Azië) [ZAPM45100]
Vespa -GTS 250 ie Super 4V E3 08- [ZAPM459L]
Vespa -GTS 300 ie 4V 09-13 E3 [ZAPM459L]
Vespa -GTS 300 ie 4V 12-16 ABS / of ABS E3 (Europa) [ZAPM45200 / ZAPM45202]
Vespa -GTS 300 ie 4V 14-16 ABS E3 (Azië) [ZAPM4520]
Vespa -GTS 300 ie 4V 14-18 ABS E3-E4 [ZAPM459L / ZAPMA39L]
Vespa -GTS 300 ie 4V 16-18 ABS E4 (Europa) [ZAPMA3300]
Vespa -GTS 300 ie 4V 17- ABS E4 (Azië) [ZAPMA3301]
Vespa -GTS 300 ie HPE 4V 19- ABS E4 [ZAPMA3600]
Vespa -GTS 300 ie Super 4V 08-16 ABS / of ABS E3 [ZAPM45200 / 202]
Vespa -GTS 300 ie Super 4V 09-13 E3 [ZAPM459L]
Vespa -GTS 300 ie Super 4V 14-16 ABS E3 (Azië) [ZAPM4520]
Vespa -GTS 300 ie Super 4V 14-18 ABS E3-E4 [ZAPM459L / ZAPMA39L]
Vespa -GTS 300 ie Super 4V 16-18 ABS E4 (Europa) [ZAPMA3300]
Vespa -GTS 300 ie Super 4V 17-18 ABS E3 (Azië) [ZAPM4520 / RP8M45710]
Vespa -GTS 300 ie Super HPE 4V 18-19 ABS E4 [ZAPMA3600]
Vespa -GTS 300 ie Super Sport 4V E3 10-13 [ZAPM45200]
Vespa -GTS 300 ie Super Tech 4V 17-19 ABS E4 (Azië) [RP8M4581 / RP8M4571]
Vespa -GTS 300 ie Super Tech 4V 17-19 ABS E4 (Azië) [ZAPMA3301]
Vespa -GTS 300 ie Super Tech HPE 4V 18-19 ABS E4 [ZAPMA3600]
Vespa -GTS 300 ie Touring 4V E3 11-13 [ZAPM45200]
Vespa -GTV 125 E3 06- [ZAPM31301]
Vespa -GTV 125 Navy E3 07-08 [ZAPM31301]
Vespa -GTV 250 ie 4V E3 06-09 [ZAPM45102]
Vespa -GTV 250 ie 4V E3 07-08 [ZAPM459L]
Vespa -GTV 250 ie Navy 4V E3 07- [ZAPM45102]
Vespa GTV 300 ie 4V E3 09-10 [ZAPM459L]
Vespa -GTV 300 ie 4V E3 10-13 [ZAPM45201]
Vespa -GTV 300 ie Sei Giorni 4V ABS E4 17- (Europa) [ZAPMA3302]
Vespa -GTV 300 ie Sei Giorni 4V ABS E4 17- [ZAPMA39L]
Vespa -GTV 300 ie Sei Giorni 4V ABS E4 17-18 (Azië) [ZAPMA3302 / ZAPM4521]
Vespa -GTV 300 ie Touring 4V E3 10-16 [ZAPM459L]
Vespa -GTV 300 ie Vie Della Moda 4V E3 12- [ZAPM45201]
